Ensure one hundred percent label accuracy with the CLS-VRL (Visual Recognition for Label) inspection system.
This advanced module is designed to work seamlessly with the CLS series, performing automatic checks on top or bottom labels to guarantee quality and compliance.
It meticulously verifies printed information through OCR, barcode, and optional Chinese character checking. It also includes optional label positioning detection to prevent misapplied labels.
Housed in a durable 304 stainless steel frame and controlled via a 15-inch HMI, the CLS-VRL safeguards your brand reputation by eliminating labeling errors before products leave your facility.
Label information inspection.
Top or bottom label recognize function, compatiblewith CLS series modules.
Durable construction with 304 stainless steel round tube frames.
15-inch HMl for easy operation.
Labeling checking/0CR/Barcode/chinese checking(option)Label positioning detection(option)
TCP/lP interface enable to scale multi-tier data applications.
Model
CLS-VRL Visual Recognition for Label
Application Scenario
Visual Recognition for Label Information
Detection Type
lmage Recognition
Detection Speed
100 packs/min
Detection Position
Top/Bottom
Camera Configuration
Global Color Camera, 3MP Resolution
GPU Configuration
❌
Software Configuration
Image Processing
Conveyor Height
800x900mm
Conveyor Direction
Right to Left

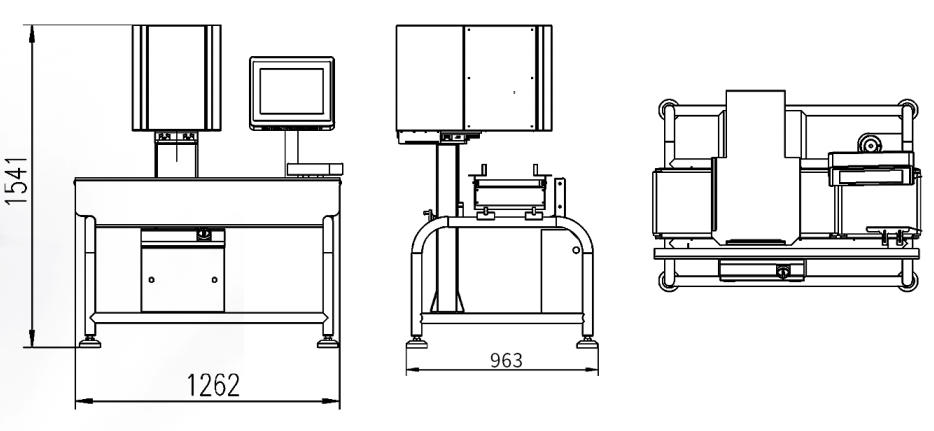

Dimensions(LxWxH)
1262x963x1541mm
Power Supply
220V/50Hz
Power Consumption
1480W
Weight
230kg
Operating Environment
0℃ - 40℃
