Desigco CLS-60 Weight Price Labeler offers maximum flexibility for advanced fresh food packaging lines.
CLS-60 provides all the precision weighing (±1g) and labeling capabilities of the CLS-40, with the added versatility of top or bottom label application.
This allows for optimal placement based on your packaging design and retail requirements. Its modular design ensures full compatibility with other CLS series modules for easy integration and line expansion.
The durable 304 stainless steel construction, 15-inch HMI, and network-ready TCP/IP interface make it a powerful and reliable cornerstone for automated production.
Weighting print labeler for fresh food package incl product information.
Top or bottom labeling available and compatible with CLS module.
Durable construction with 304 stainless steel round tube frames.
15-inch HMl for easy operation.
Multiple packages available by air blow and piston labeling method.
±1g weighing precision. Real-time product weighing& automated label information printing.
Model
CLS-60 Weight Price Labeler
Application Scenario
Modified Atmosphere Packaging, Skin Packaging, Fresh Food Packaging
Labeling Speed
60 packs/min
Labeling Method
Air-blow/Piston/Belt
Label Position
Top/Bottom
Print Method
Thermal/Thermal Transfer
Print Speed
300m/s
Print Resolution
300dpi
Label Size
20x20mm - 100x100mm
Label Roll Size
Φ76mm(lD)/ Φ300mm(OD)
Weighing Accuracy
±1g
Weighing Range
0-3000g
Conveyor Height
800mm - 900mm
Conveyor Direction
Right to Left

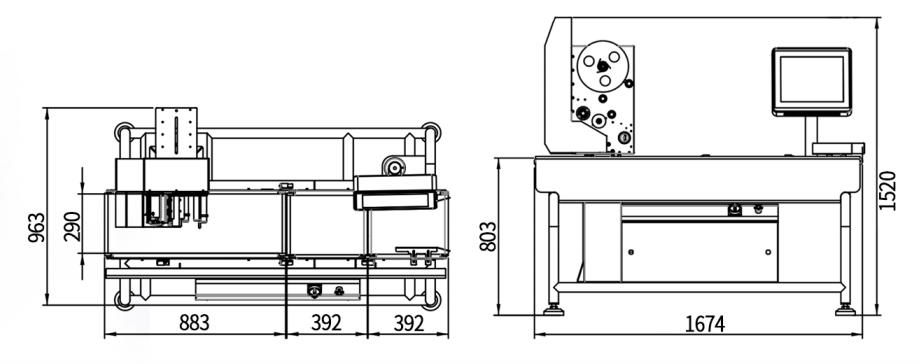

Dimensions(LxWxH)
1674x963x1520mm
Power Supply
220V/50Hz
Power Consumption
1800W
Weight
320kg
Operating Environment
0℃ - 40℃
